Description
Specifications
- General Information
-
Cap-Base G24Q-3 [ G24q-3]Nominal Lifetime (Nom) 30000 hSwitching Cycle 50000XB50L70 30000 h - Light Technical
-
Color Code 840 [ CCT of 4000K]Luminous Flux (Nom) 1000 lmLuminous Flux (Rated) (Nom) 1000 lmCorrelated Color Temperature (Nom) 4000 KColor Consistency <6Color Rendering Index (Nom) 83LLMF At End Of Nominal Lifetime (Nom) 70 % - Operating and Electrical
-
Input Frequency 30000-80000 HzPower (Rated) (Nom) 9 WLamp Current (Max) 400 mALamp Current (Min) 250 mAStarting Time (Nom) 0.5 sWarm Up Time to 60% Light (Nom) 0.5 sPower Factor (Nom) 0.9Voltage (Nom) 20-50 V - Temperature
-
T-Ambient (Max) 35 °CT-Ambient (Min) -20 °CT-Storage (Max) 65 °CT-Storage (Min) -40 °CT-Case Maximum (Nom) 76 °C - Controls and Dimming
-
Dimmable No - Mechanical and Housing
-
Product Length 200 mm - Approval and Application
-
Energy Saving Product YesEnergy Efficiency Label (EEL) A+Approval Marks TUV
CE marking
RoHS compliance
KEMA Keur certificate
Energy Consumption kWh/1000 h 12 kWh - Product Data
-

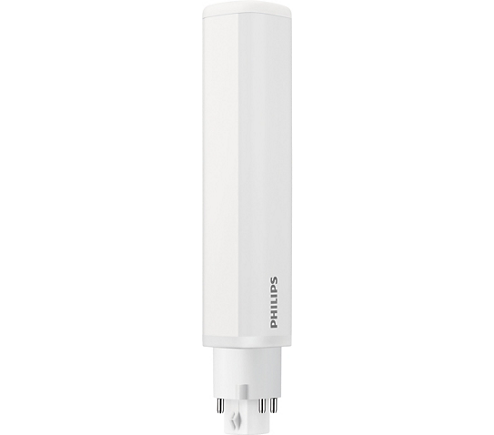

Full product code 871869654117300Order product name CorePro LED PLC CorePro LED PLC 9W 840 4P G24q-3EAN/UPC – Product 8718696541173Order code 929001200902Numerator – Quantity Per Pack 1Numerator – Packs per outer box 10Material Nr. (12NC) 929001200902Net Weight (Piece) 0.088 kg
