Description
Specifications
- General Information
-

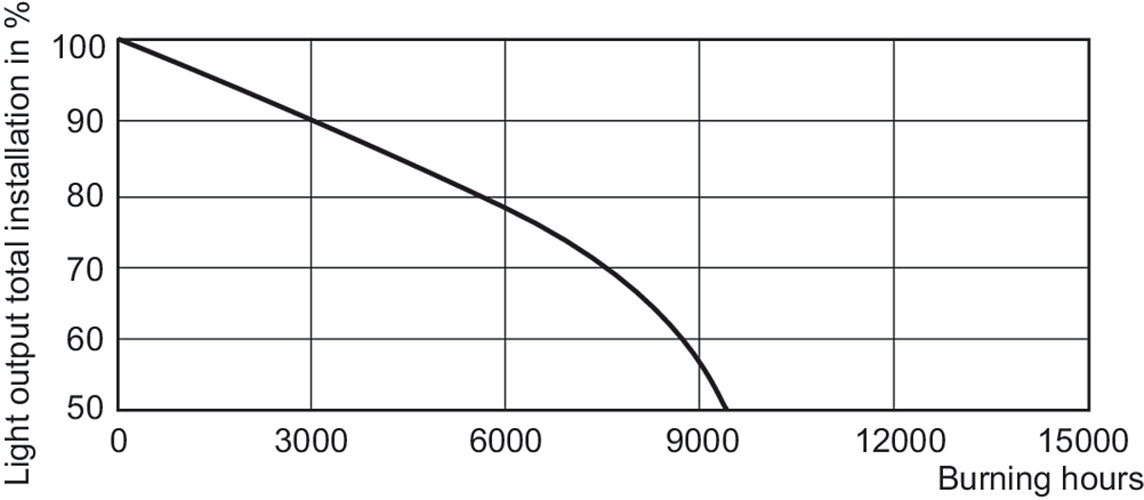

Cap-Base GX12-1 [ GX12-1]Operating Position UNIVERSAL [ Any or Universal (U)]Life to 5% Failures (Nom) 5000 hLife to 20% Failures (Nom) 8000 hLife to 50% Failures (Nom) 10000 hANSI Code HID S167System Description – - Light Technical
-

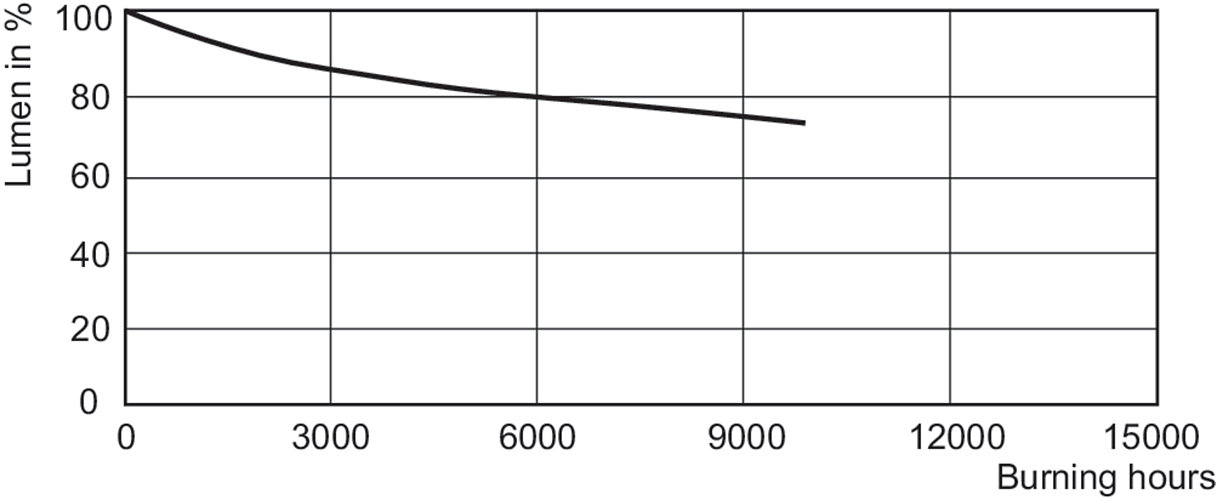

Color Code 825 [ CCT of 2500K]Luminous Flux (Rated) (Min) 4400 lmLuminous Flux (Rated) (Nom) 4900 lmColor Designation Golden WhiteLumen Maintenance 10000 h (Min) 65 %Lumen Maintenance 10000 h (Nom) 75 %Lumen Maintenance 2000 h (Min) 85 %Lumen Maintenance 2000 h (Nom) 95 %Lumen Maintenance 5000 h (Min) 75 %Lumen Maintenance 5000 h (Nom) 80 %Chromaticity Coordinate X (Nom) 469Chromaticity Coordinate Y (Nom) 406Correlated Color Temperature (Nom) 2500 KLuminous Efficacy (Rated) (Nom) 50 lm/WColor Rendering Index (Min) 80Color Rendering Index (Nom) 83 - Operating and Electrical
-
Power (Rated) (Nom) 99.0 WLamp Current Run-Up (Max) 2.4 AIgnition Peak Voltage (Max) 4000 VIgnition Supply Voltage (Min) 205 VRe-Ignition Time (Min) (Max) 1.5 minIgnition Time (Max) 60 sVoltage (Max) 98 VVoltage (Min) 84 VVoltage (Nom) 91 V - Controls and Dimming
-

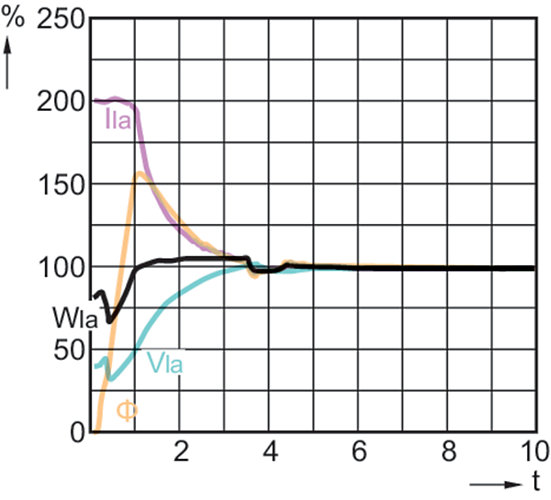

Dimmable NoRun-Up Time 90% (Max) 2 min - Mechanical and Housing
-
Bulb Finish ClearBulb Material – - Approval and Application
-
Energy Efficiency Label (EEL) BMercury (Hg) Content (Nom) 15 mgEnergy Consumption kWh/1000 h 109 kWh - Luminaire Design Requirements
-
Bulb Temperature (Max) 650 °CCap-Base Temperature (Max) 280 °CPinch Temperature (Max) 350 °C - Product Data
-

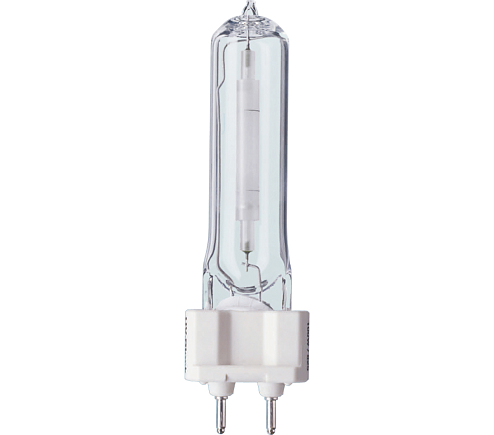

Full product code 871150020233815Order product name MASTER SDW-TG Mini 100W/825 GX12-1 1CT/12EAN/UPC – Product 8711500202338Order code 928158905131Numerator – Quantity Per Pack 1Numerator – Packs per outer box 12Material Nr. (12NC) 928158905131Net Weight (Piece) 0.030 kgILCOS Code STH-100/25/1B-GX12-1
