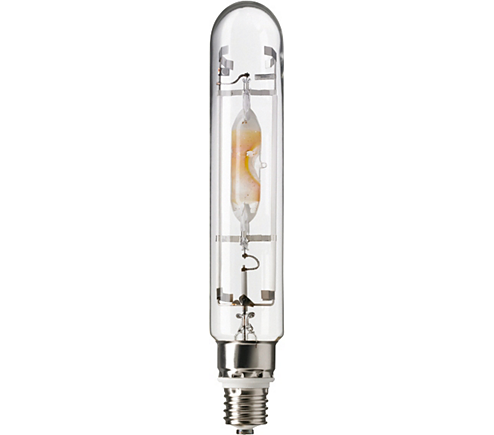

HPI-T 1000W/543 E40 1SL/4

928482600096

928482600096 1

HPI-T 1000W/543 E40 1SL/4

Add to Wishlist

Categories: High Intensity Discharge Lamps, HPI-T High Wattage, Philips, Quartz Metal Halide Tags: 8711500183767, 928482600096

Description
Reviews (0)

Description

Specifications

General Information

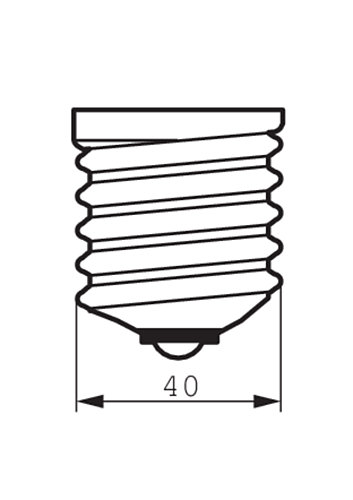

Cap-Base	E40 [ E40]
Operating Position	P [ Parallel or Horizontal(HOR)]
Life to 5% Failures (Nom)	3000 h
Life to 10% Failures (Nom)	5500 h

Life to 20% Failures (Nom)	8000 h
Life to 50% Failures (Nom)	12000 h
System Description	–

Light Technical

Color Code	543 [ CCT of 4300K]
Luminous Flux (Rated) (Min)	79000 lm
Luminous Flux (Rated) (Nom)	85000 lm
Color Designation	Cool White (CW)

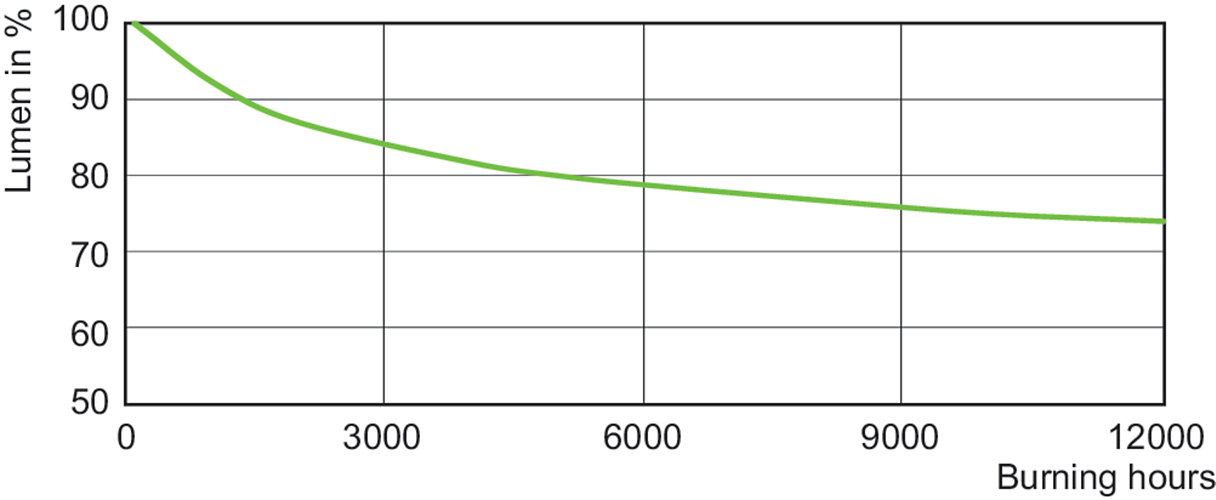

Lumen Maintenance 10000 h (Nom)	75 %
Lumen Maintenance 2000 h (Nom)	87 %
Lumen Maintenance 5000 h (Nom)	80 %

Chromaticity Coordinate X (Nom)	370
Chromaticity Coordinate Y (Nom)	380
Correlated Color Temperature (Nom)	4300 K
Luminous Efficacy (Rated) (Nom)	86 lm/W

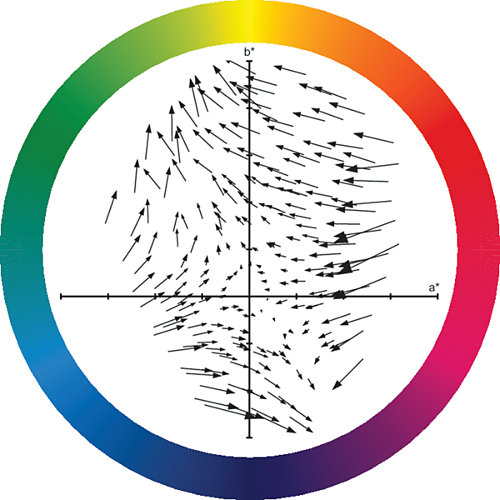

Color Rendering Index (Nom)	57

Operating and Electrical

Lamp supply voltage	220 V [ 220]
Power (Rated) (Nom)	985.0 W

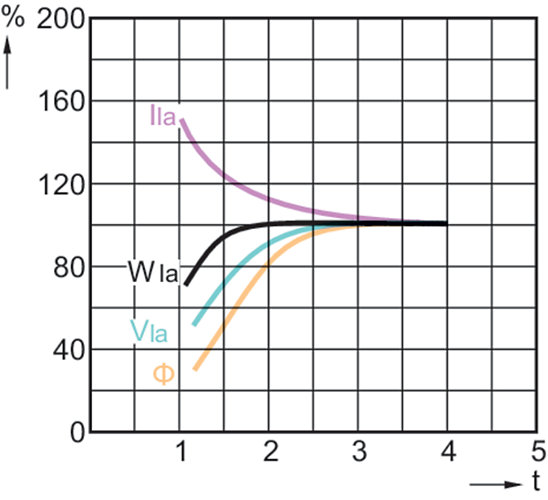

Lamp Current Run-Up (Max)	14.2 A
Lamp Current (EM) (Nom)	8.25 A
Ignition Supply Voltage (Max)	198 V

Ignition Supply Voltage (Min)	198 V
Ignition Time (Max)	30 s
Voltage (Max)	140 V
Voltage (Min)	120 V
Voltage (Nom)	130 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Finish

Clear

Approval and Application

Energy Efficiency Label (EEL)	A
Mercury (Hg) Content (Nom)	86 mg

Energy Consumption kWh/1000 h

1084 kWh

Luminaire Design Requirements

Bulb Temperature (Max)	555 °C
Cap-Base Temperature (Max)	300 °C

Product Data

Full product code	871150018373645
Order product name	HPI-T 1000W/543 E40 1SL/4
EAN/UPC – Product	8711500183736
Order code	928482600096
Numerator – Quantity Per Pack	1
