Description
Specifications
- General Information
-
Cap-Base E40 [ E40]Operating Position H15 [ Hanging +/-15D or Base Up (BU)]Life to 5% Failures (Nom) 5000 hLife to 10% Failures (Nom) 7500 hLife to 20% Failures (Nom) 11000 hLife to 50% Failures (Nom) 20000 hSystem Description Base-UpLSF 2000 h Rated 99 %LSF 4000 h Rated 96 %LSF 6000 h Rated 93 %LSF 8000 h Rated 88 %LSF 12000 h Rated 76 %LSF 16000 h Rated 63 %LSF 20000 h Rated 50 % - Light Technical
-

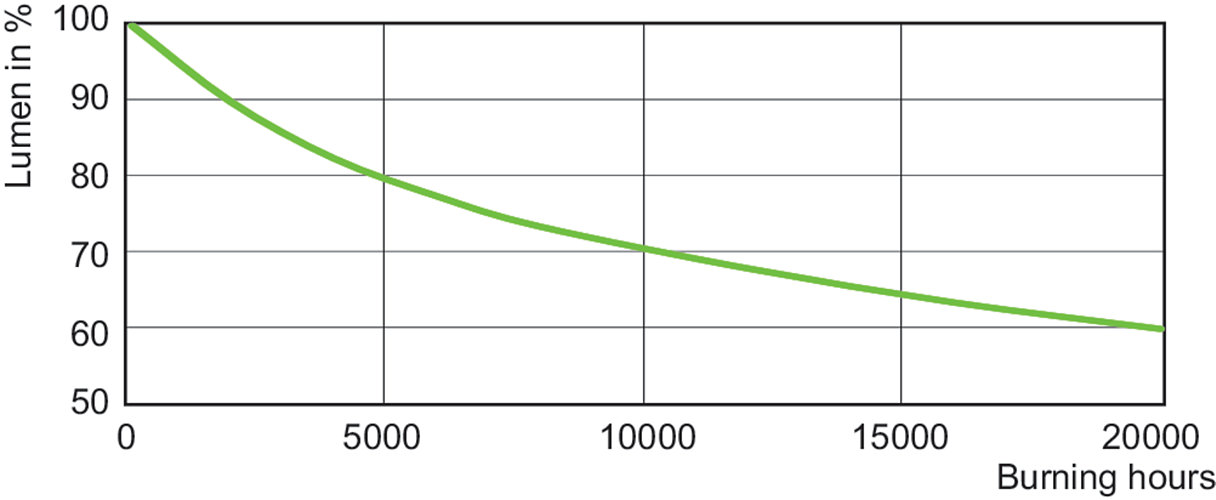

Color Code 645 [ CCT of 4500K]Luminous Flux (Rated) (Nom) 18000 lmColor Designation Cool White (CW)Chromaticity Coordinate X (Nom) 365Chromaticity Coordinate Y (Nom) 363Correlated Color Temperature (Nom) 4500 KLuminous Efficacy (Rated) (Nom) 72 lm/WColor Rendering Index (Nom) 65LLMF 2000 h Rated 90 %LLMF 4000 h Rated 82 %LLMF 6000 h Rated 77 %LLMF 8000 h Rated 73 %LLMF 12000 h Rated 68 %LLMF 16000 h Rated 63 %LLMF 20000 h Rated 60 %Ratio Scotopic/Photopic Lumens 1.50 - Operating and Electrical
-
Power (Rated) (Nom) 253.0 WLamp Current Run-Up (Max) 3.9 ALamp Current (EM) (Nom) 2.2 AIgnition Peak Voltage (Max) 5000 VIgnition Supply Voltage (Min) 198 VIgnition Time (Max) 30 sVoltage (Max) 138 VVoltage (Min) 118 VVoltage (Nom) 128 V - Controls and Dimming
-
Dimmable No - Mechanical and Housing
-
Bulb Finish Coated glass - Approval and Application
-
Energy Efficiency Label (EEL) AMercury (Hg) Content (Nom) 47 mgEnergy Consumption kWh/1000 h 278 kWh - Luminaire Design Requirements
-
Bulb Temperature (Max) 350 °CCap-Base Temperature (Max) 250 °C - Product Data
-

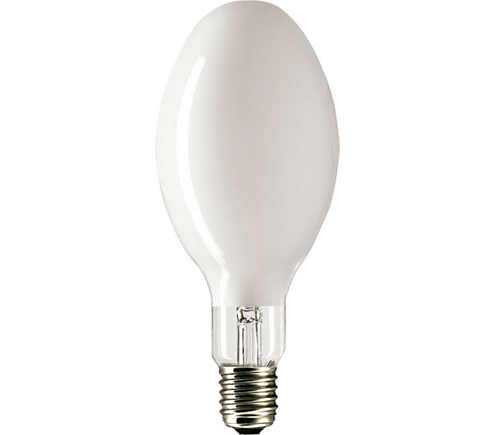

Full product code 871150018114515Order product name MASTER HPI Plus 250W/645 BU E40 1SL/12EAN/UPC – Product 8711500181145Order code 928076709891Numerator – Quantity Per Pack 1
